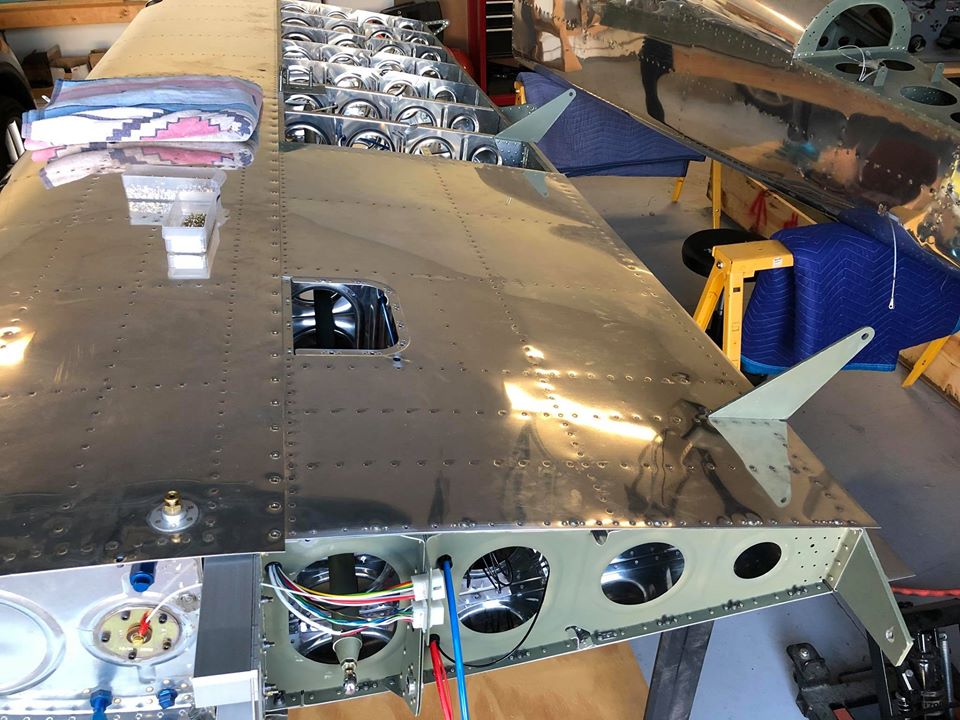

Left wing bottom outboard skin riveting in progress.
Left wing bottom outboard skin riveting in progress.
Wings, skins progress
Tag: Bottom Skins

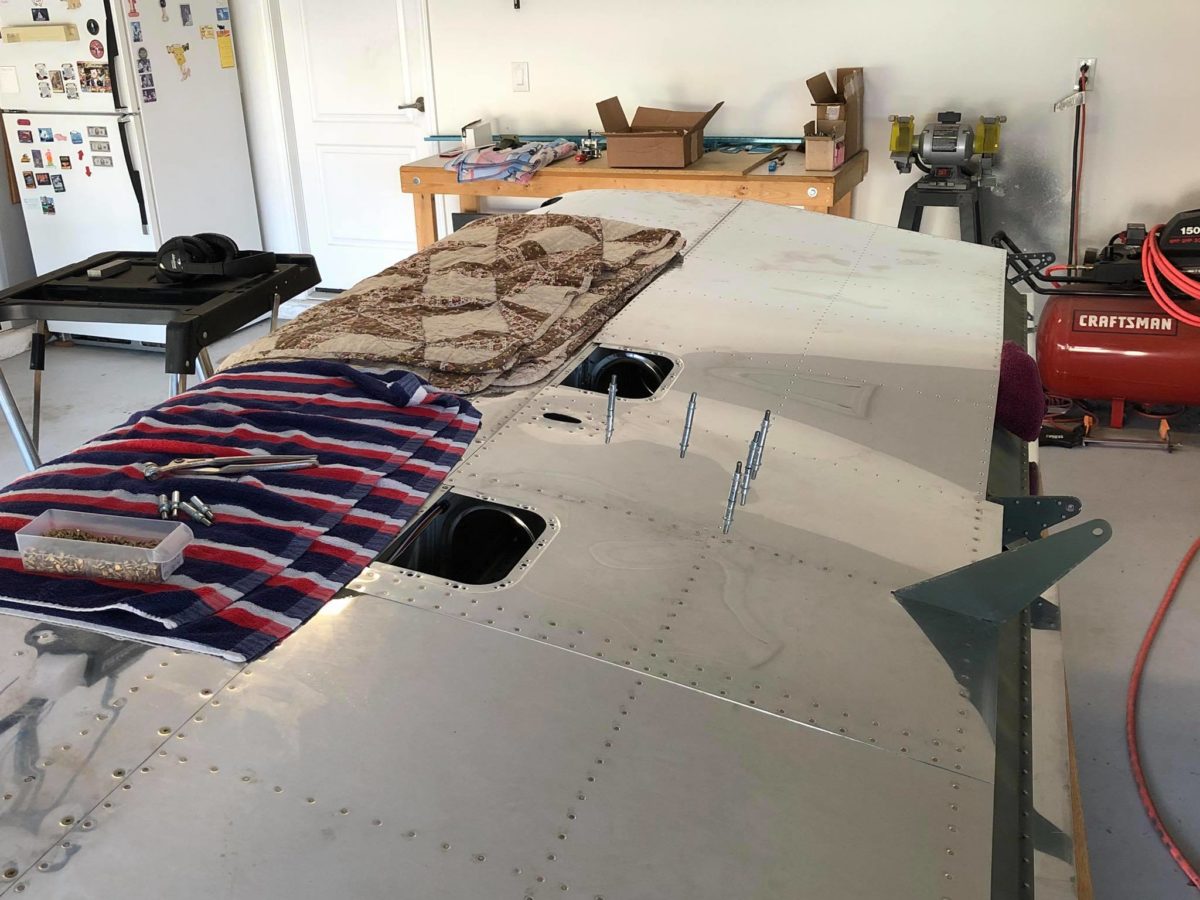

Wings, skins progress
The last pre-riveting fit check for the left wing bottom outboard skin.
Left wing bellcrank to aileron pushrod fabricated and ready to go.

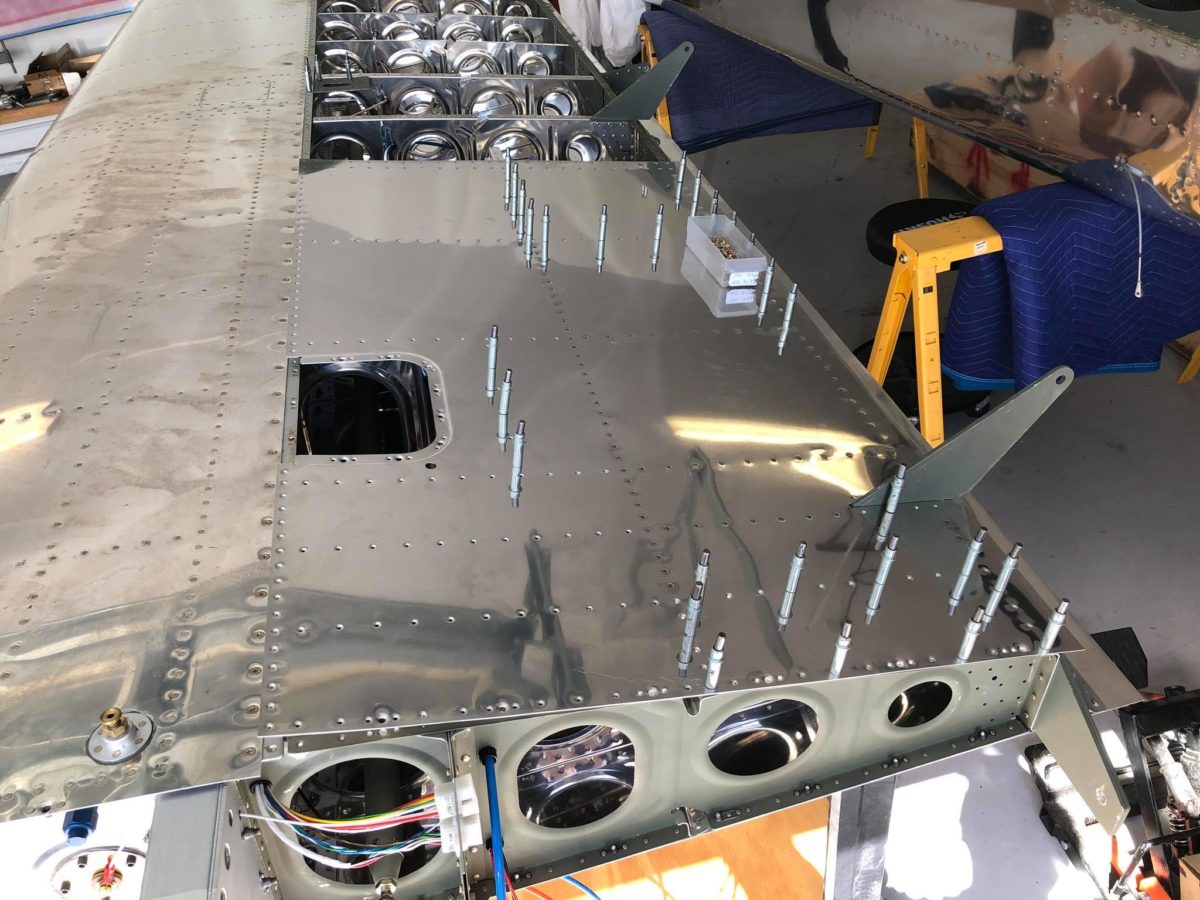

Wings, skins underway
Left wing bottom inboard skin riveting underway.
Left wing bottom inboard skin riveting underway.
Right wing components in the house. Leading edge and tank are complete and ready to install on the wing. Main and rear spars are waiting for their turn on the assembly bench.
Left wing bottom inboard skin fully riveted.
Wings, skins continued…
Fabrication of left wing torque tube to bellcrank pushrod.
Left wing torque tube to bellcrank pushrod temporarily installed.
Left wing inboard area ready to be enclosed.
Left wing inboard bottom skin ready for riveting.
