Canopy cradles and hinge assemblies ready for installation.
Forward roll bar braces clecoed in place for fitting.
Forward roll bar braces clecoed in place for fitting.

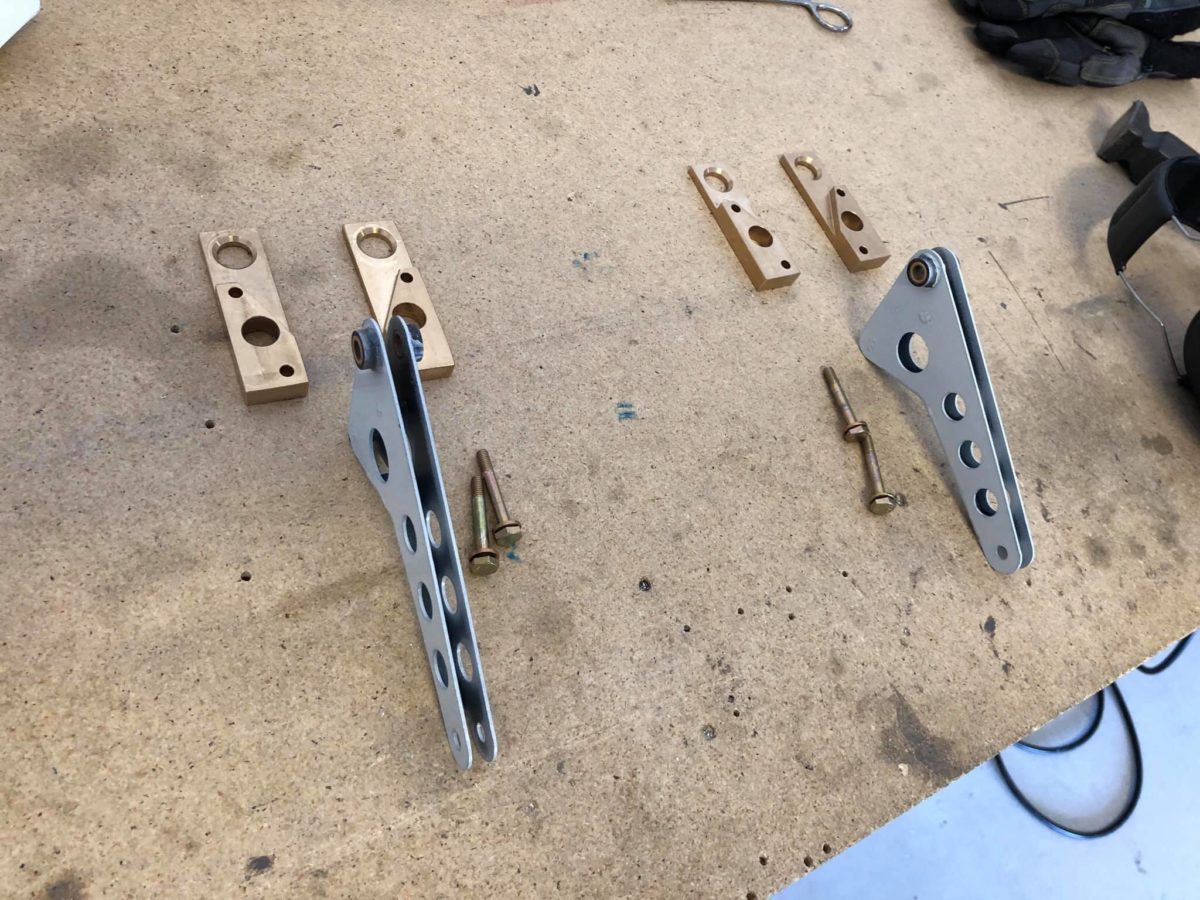

Fuselage, canopy assembly
Tag: Canopy

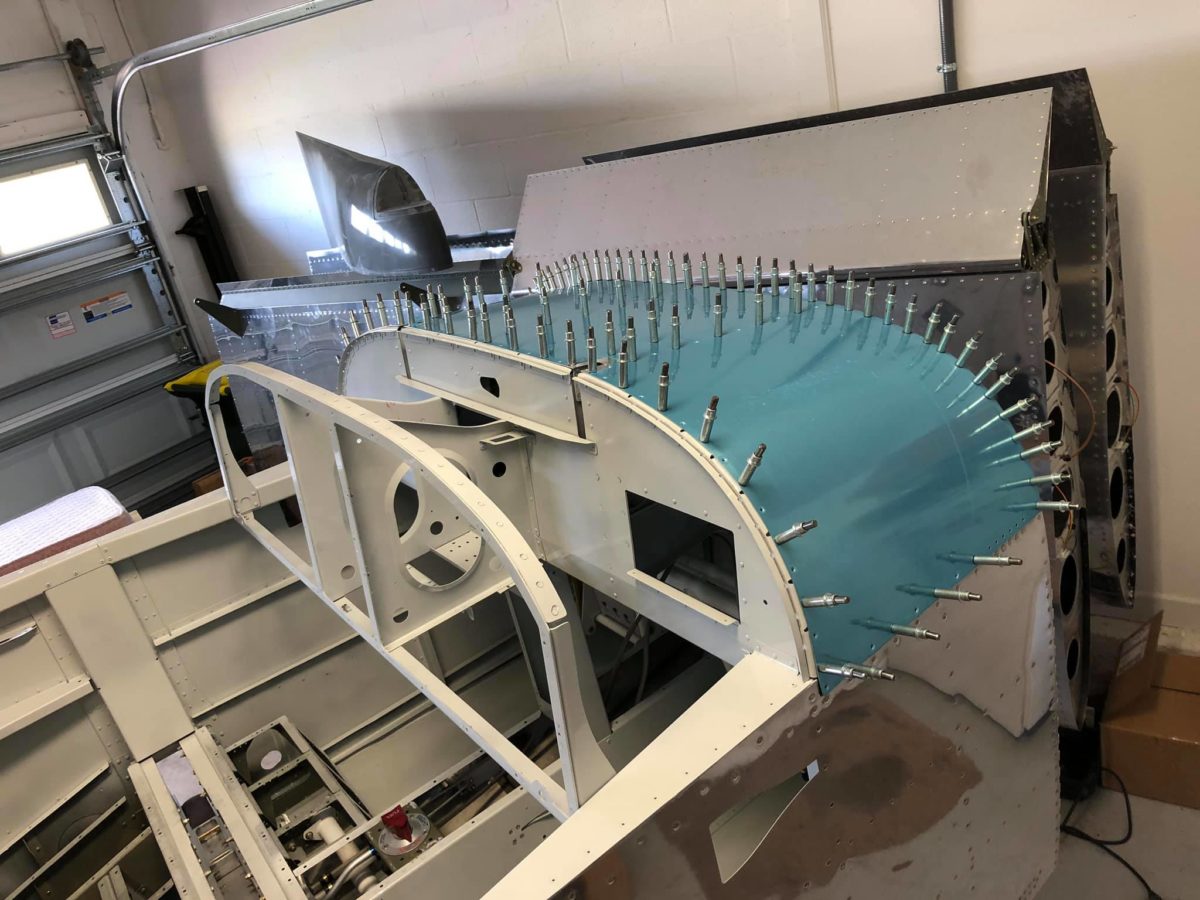

Fuselage, canopy, skins progress
Major components of the canopy release mechanism completed.
Canopy cradles painted.
Cowl attach piano hinges and hinge shims.
Forward top skin ready for dimpling.
Forward top skin clecoed in place.
Forward top skin clecoed in place.
Forward top skin clecoed in place.
Cowl attach piano hinges and hinge shims drilled & clecoed in place.
Fuselage, canopy underway
Canopy decks drilled and clecoed in place.
Masking for tank sealant (used all over the plane for water and/or oil intrusion sealing) applied.
Canopy decks sealed and riveted in place.
