Firewall forward continued…

The last four (at least for now!) Adel clamps loosely installed.

Mixture cable bracket installed.

Starter wiring underway.

Starter wiring complete.

Starter wires secured.

Fuel injector servo as received.

Fuel injector servo mount ready for its gasket.

Fuel injector servo installed and torqued. Inlet and outlet lines have also been connected and torqued.

Fuel injector servo installed and torqued. Inlet and outlet lines have also been connected and torqued.

Fuel injector servo installed and torqued. Inlet and outlet lines have also been connected and torqued.

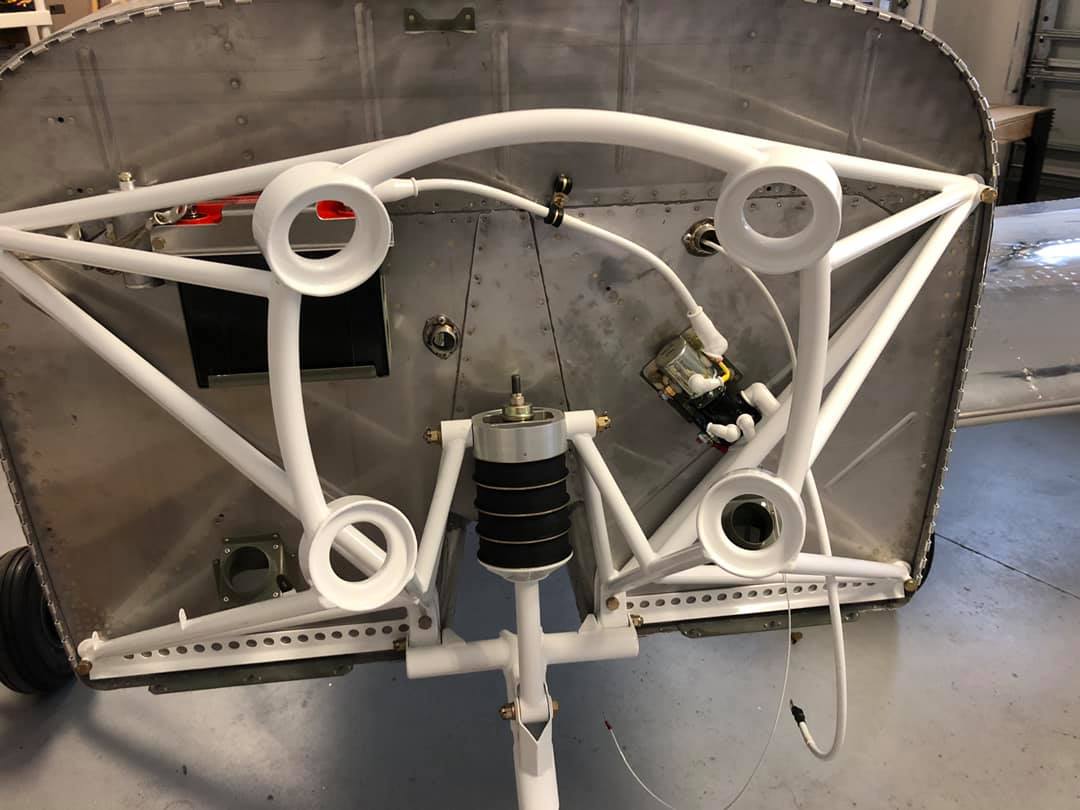

Firewall forward underway

A fresh new Hartzell prop governor.

Prop governor bracket components being primed.

Interesting note that the governor bracket for the -8 was powdercoated steel and the -14A version is, obviously, aluminum.

The covered governor pad as received from Lycoming.

Cover removed and weeping a little oil.

Governor installed and torqued.

Governor bracket temporarily fitted, Adel clamps adjusted, and fuel injection line slightly massaged for clearance.

Fuel flow transducer (red cube) installed and fuel lines in process.

Sniffle valve installed and covered to prevent oil seepage.

Red cube and fuel line closeup.

Initial FWF Adel clamp installation in process. Eight of twelve are done with the others to follow tomorrow.

Initial FWF Adel clamp installation in process. Eight of twelve are done with the others to follow tomorrow.

Wings, Firewall Forward in process

Left wingtip nav light installed.

Left wingtip test fit again – this time to see if my screw countersinks fit the skin dimples. Success!

Wingtip rib installation underway.

Left wingtip ready to mount on the wing.

Left wingtip mounted for good (hopefully) and ready for flight.

Left wingtip mounted for good (hopefully) and ready for flight.

Battery, ground strap, and starter relay power cable installed.
