Category: Ribs

Wings, skins continued…

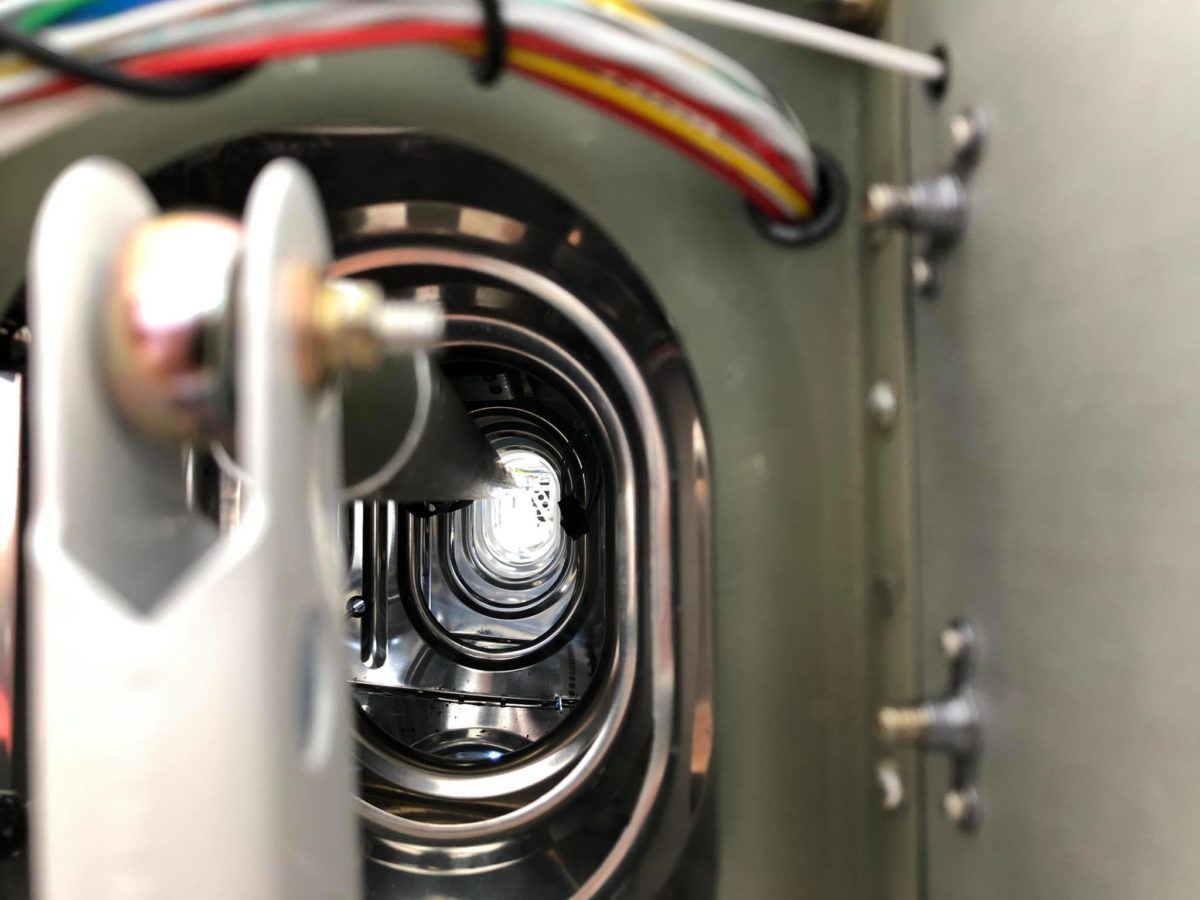

Clearance check of right wing aileron torque tube-to-bellcrank pushrod with aileron trim servo assembly installed.

Clearance check of right wing aileron torque tube-to-bellcrank pushrod with aileron trim servo assembly installed.

Right wing inboard inspection plate (with aileron trim servo assembly mounted) installed.

Overall view of right wing inboard inspection plate (with aileron trim servo assembly mounted) installed.

Right wing outboard bottom J-stiffener in place.

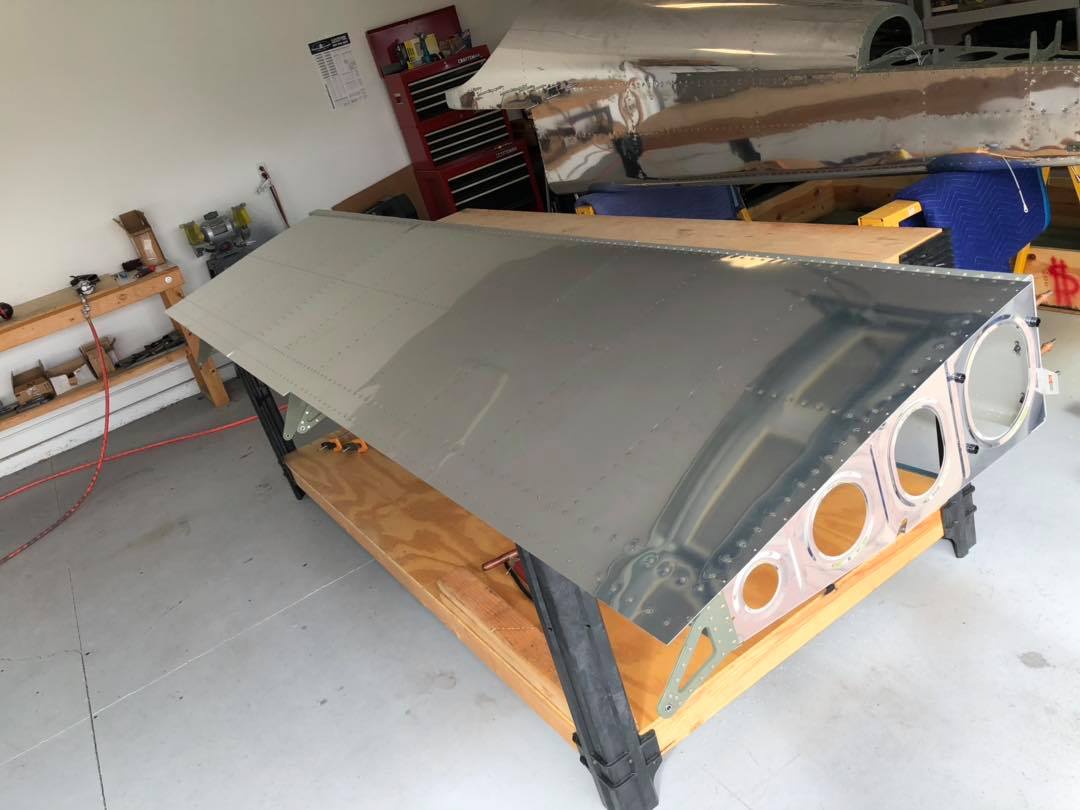

Right wing outboard bottom skin ready for riveting.

Right wing outboard bottom skin riveting in progress.

Wings, skins progress

Right wing outboard aileron hinge bracket mounted.

Right wing aileron gap fairing mounted.

Right wing leading edge clecoed on for riveting.

Right wing leading edge riveting in progress.

Right wing leading edge partially riveted.

Right wing leading edge fully riveted.

Right wing leading edge fully riveted.

Wings, rear spar, ribs, aileron brackets progress

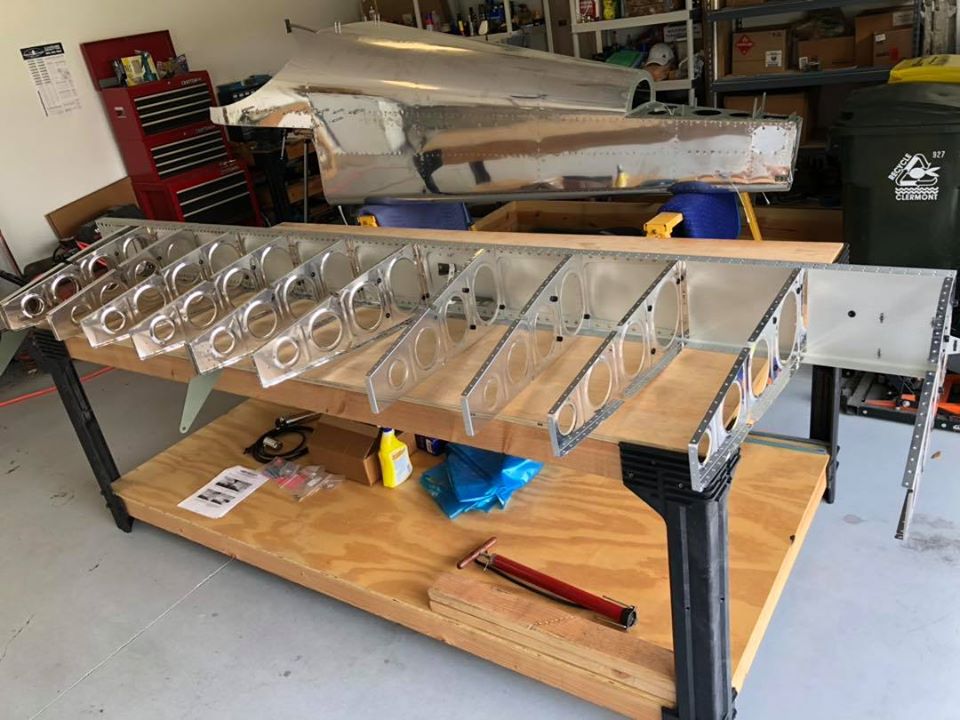

Right wing ribs permanently bolted and riveted to the main spar.

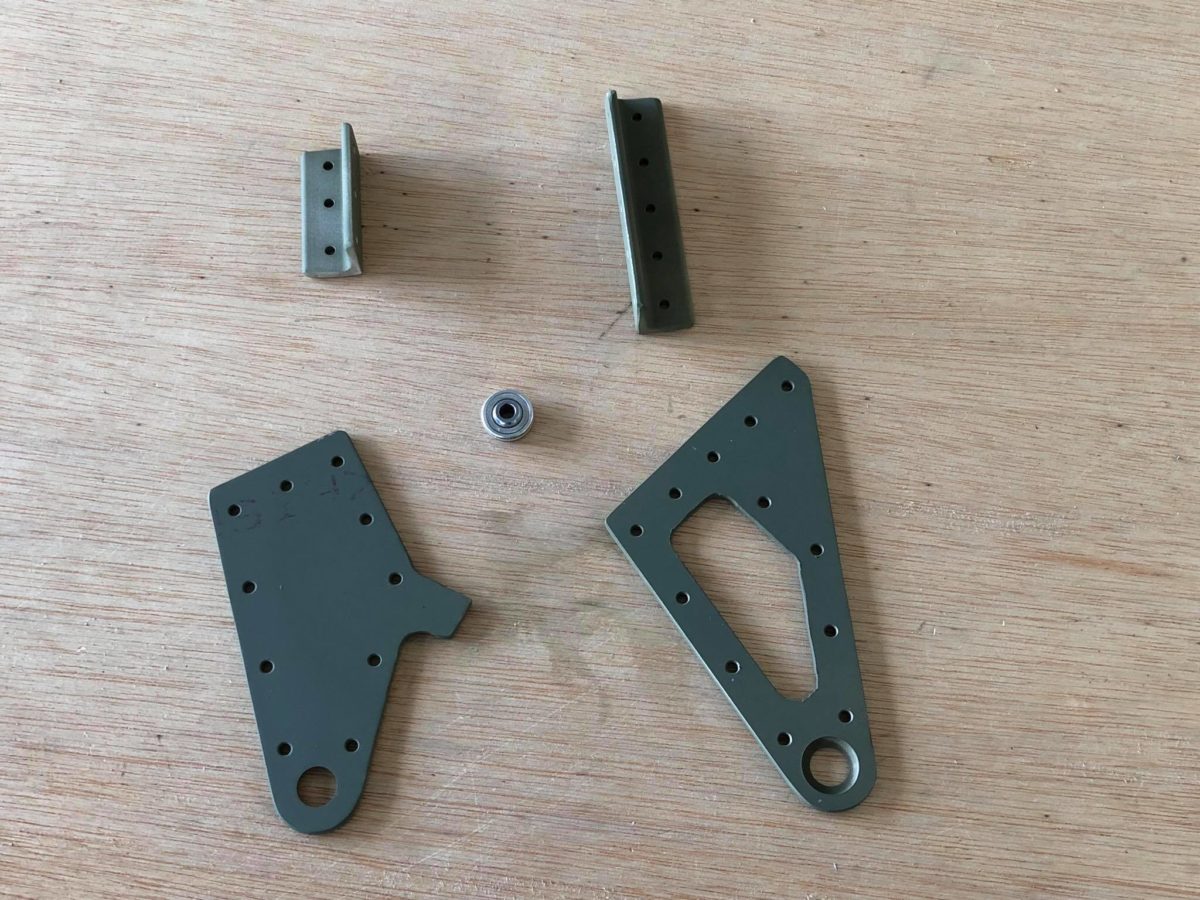

Right aileron inboard bracket components.

Right aileron inboard bracket riveted together and ready to install on the wing.

Right wing outboard aileron bracket riveted together and ready to install on the wing.

Right wing rear spar doublers drilled to the rear spar.
