Yep, wiring spaghetti. That’s what my life looks like these days, only some of it is under the panel and damn near inaccessible. Super fun.
Yep, wiring spaghetti. That’s what my life looks like these days, only some of it is under the panel and damn near inaccessible. Super fun.

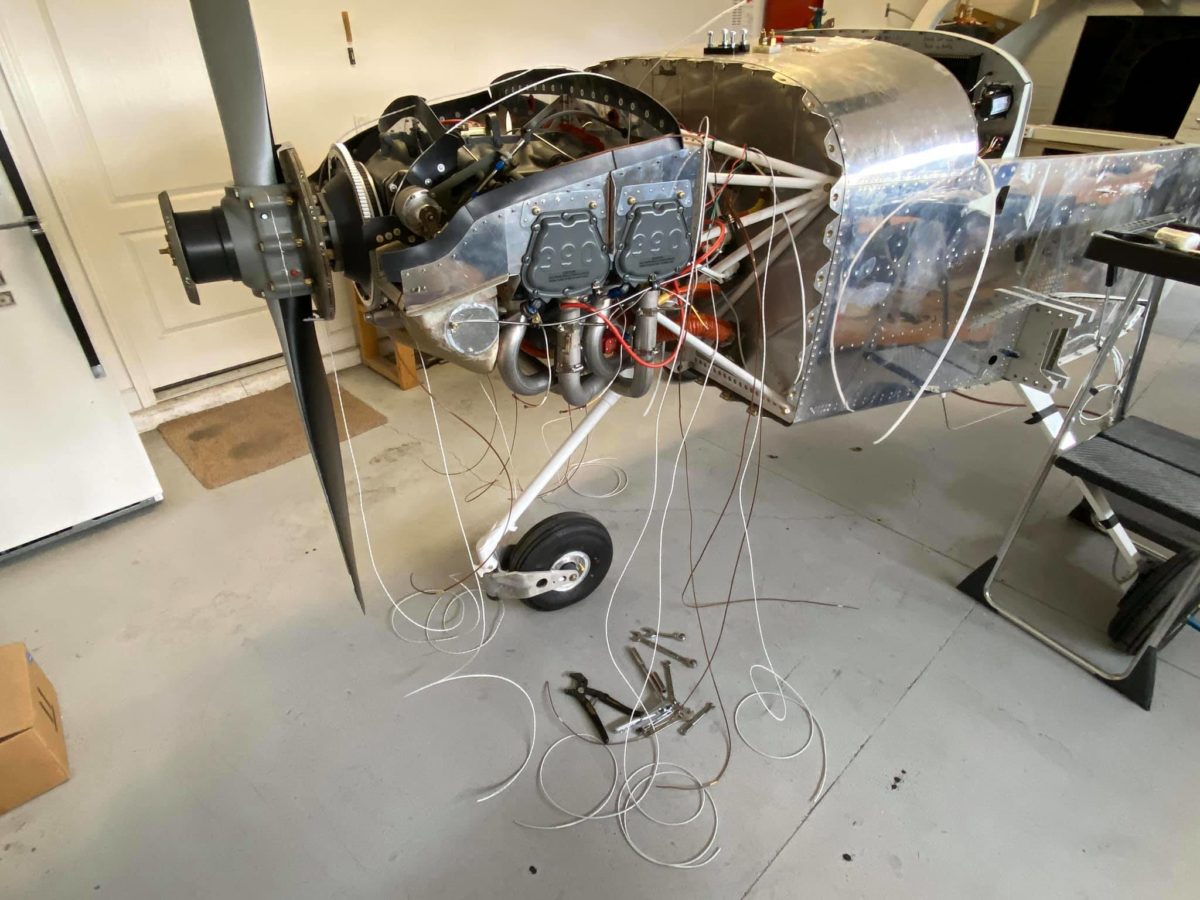

Right-side EGT, CHT, and ignition wires routed and connected. Some final cleanup still necessary, obviously.
ANL fuse-to-shunt wire in process.
ANL fuse-to-shunt wires ready to install.
ANL fuse blocks and shunt in place with wiring underway.
ANL fuse blocks and shunt wire boots installed.
The open fuse block terminal is for the backup alternator’s B-lead. The open shunt terminal is for the main bus wire.
