Right wing ribs being permanently bolted and riveted to the spar. Flap hinge brackets primed and riveted to their respective ribs.
Wings, spar, ribs continued…
Tag: Flap brackets
Wings, spar, ribs progress

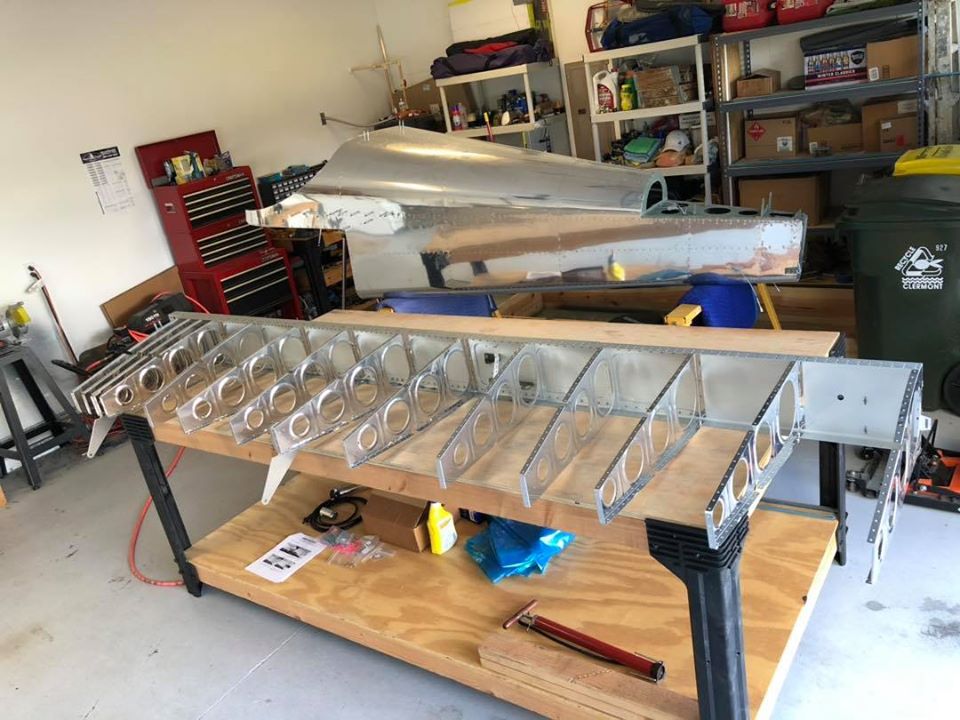

Right wing ribs fit to spar and flap hinge brackets drilled to ribs.
Wings, flaps, spar
Left flap weighted while trailing edge temporary adhesive sets.
Left flap trailing edge rivets top half set. They’re done double-flush, so one half at a time.
Bronze bushings pressed into left wing flap hinge brackets.
Left flap complete. Ready to go into the house for the duration.
Right wing main spar now in the garage awaiting its turn…
Wings, spars, ribs, flap brackets
