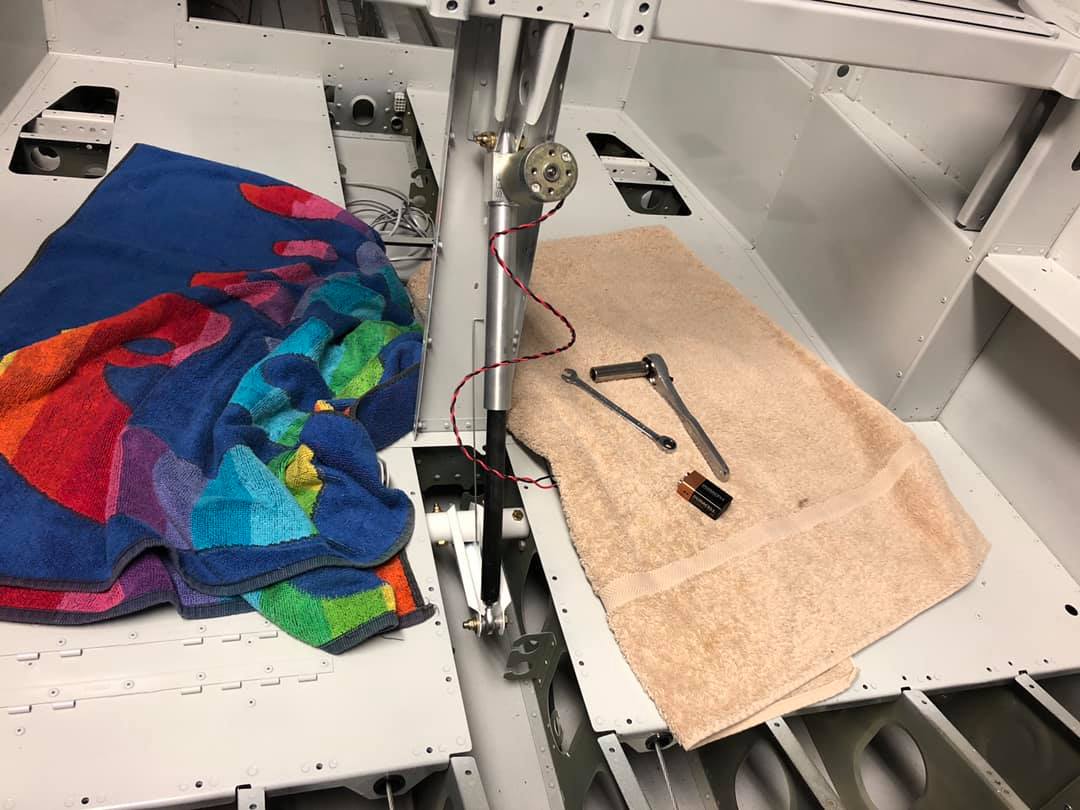

Flap actuation system installed. Flap torque arms, flap crank, and motor. I still have to get the flap position sensor wired up tomorrow…
Fuselage, flap system continued…
Tag: Flap System
Fuselage, flap system progress
Extended rudder cable links installed. I only cotter-pinned the forward connections, as they won’t be changing. I’ll do the aft connections during final assembly once the rudder is on the plane and I can confirm full control movement.
Right-side rudder cable guides in place.
Left-side rudder cable guides in place.
Flap actuation system in process – torque arms being drilled to the flap crank.
Fuselage, flap system continued…
Baggage side covers clecoed for riveting. Flap motor channel initial test fitting.
Baggage side covers, flap motor channel, and flap motor brackets all riveted.

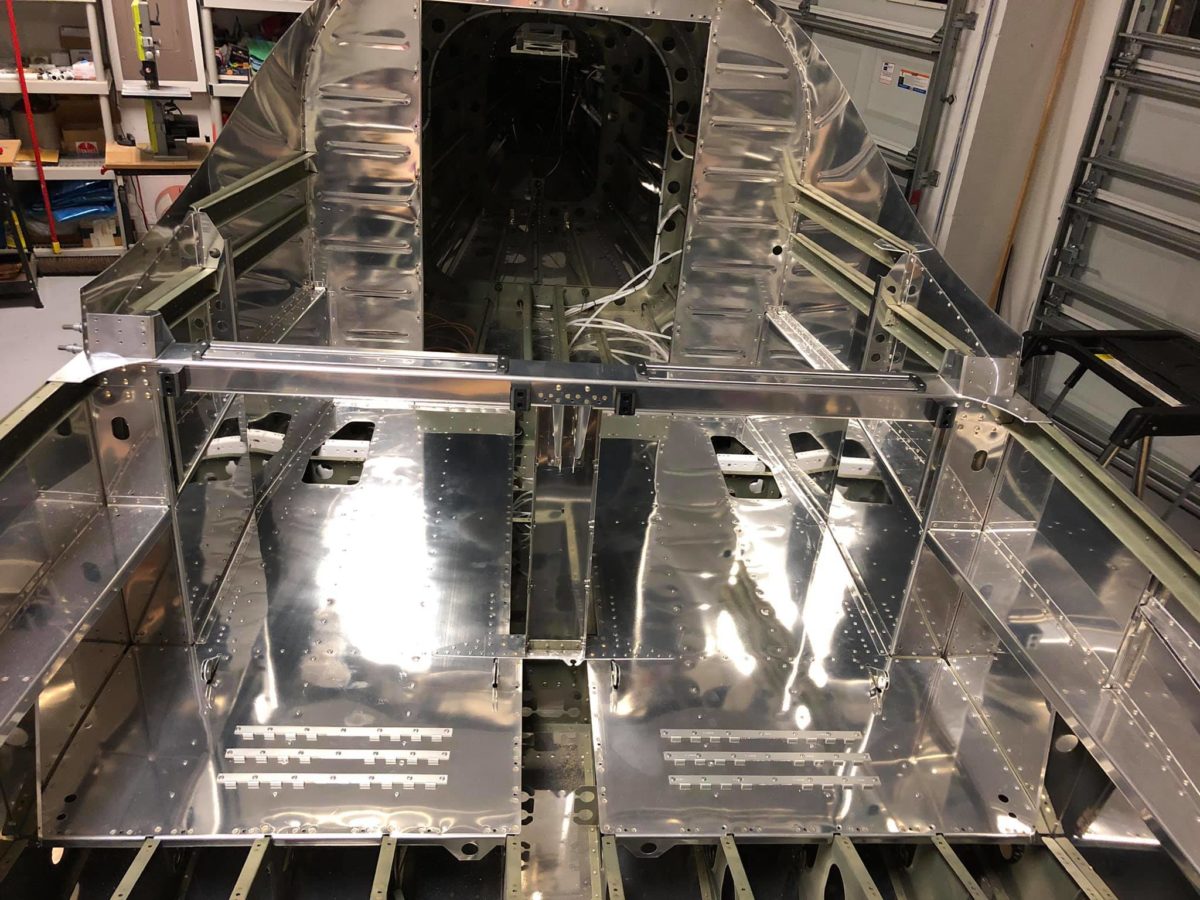

Fuselage interior now ready for paint!!
Fuselage, flap system underway
Flap motor channel nutplate riveting in process.
Baggage floors riveted, along with seatback hinges and baggage floor splice.
