Right wing ribs fit to spar and flap hinge brackets drilled to ribs.
Wings, spar, ribs progress
Category: Ribs
Wings, spar, ribs assembly

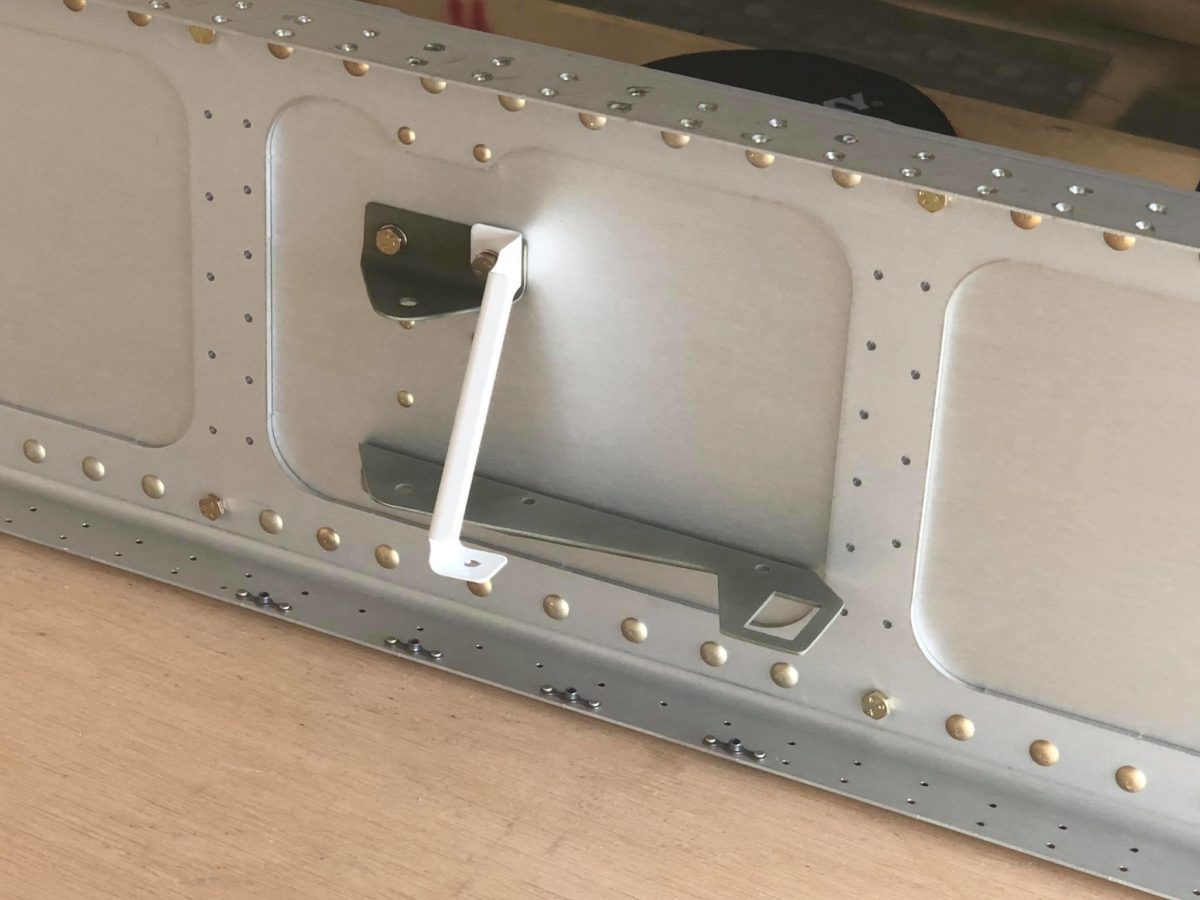

Right wing aileron bellcrank brackets, including autopilot wiring harness and roll servo supports.
Right wing main spar ready for ribs!
Right wing ribs ready for fluting. Not the most fun in the world, but if you want to build your airplane, you have to do ’em.
Right wing ribs ready for dimpling.
Wings, ailerons assembly continued…
Right aileron ready for final disassembly prior to riveting.
Right aileron components ready for assembly.
Right aileron nose skin, nose ribs, and counterweight assembly in place.
Right aileron top skin clecoed in place for riveting.
Right aileron main (end) ribs ready for riveting.
Right aileron bottom skin clecoed in place for riveting.
Right aileron trailing edge clecoed in place for riveting.
Right aileron complete and headed into the house for the duration…
Wings, ailerons assembly

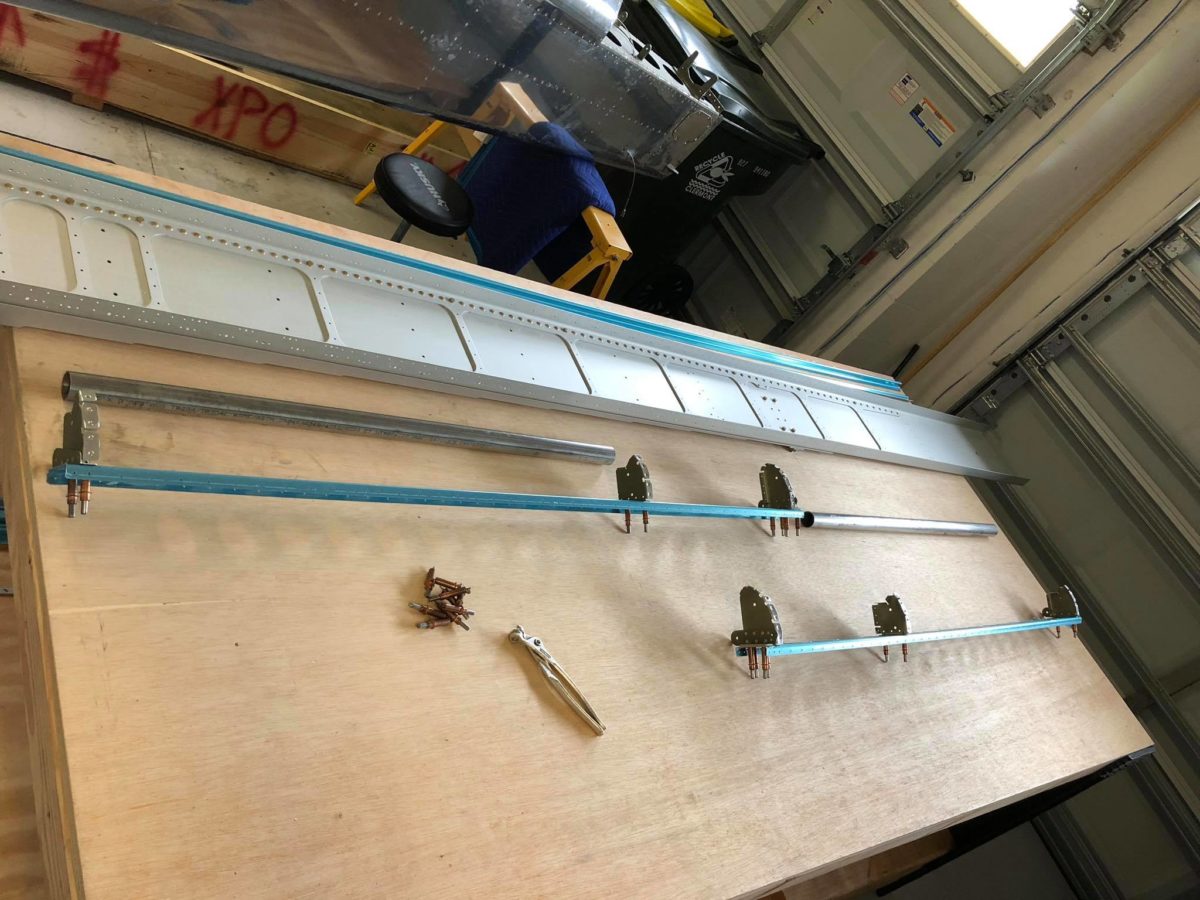

Aileron ribs clecoed to spars. Stainless steel tubes are the counterbalances.
Aileron ribs clecoed to spars. Stainless steel tubes are the counterbalances.
Left aileron nose skin clecoed in place.
Right aileron counterbalance attached to nose ribs.
Right aileron clecoed back together to complete counterbalance drilling.
