Wiring – RV-14A

Firewall forward underway

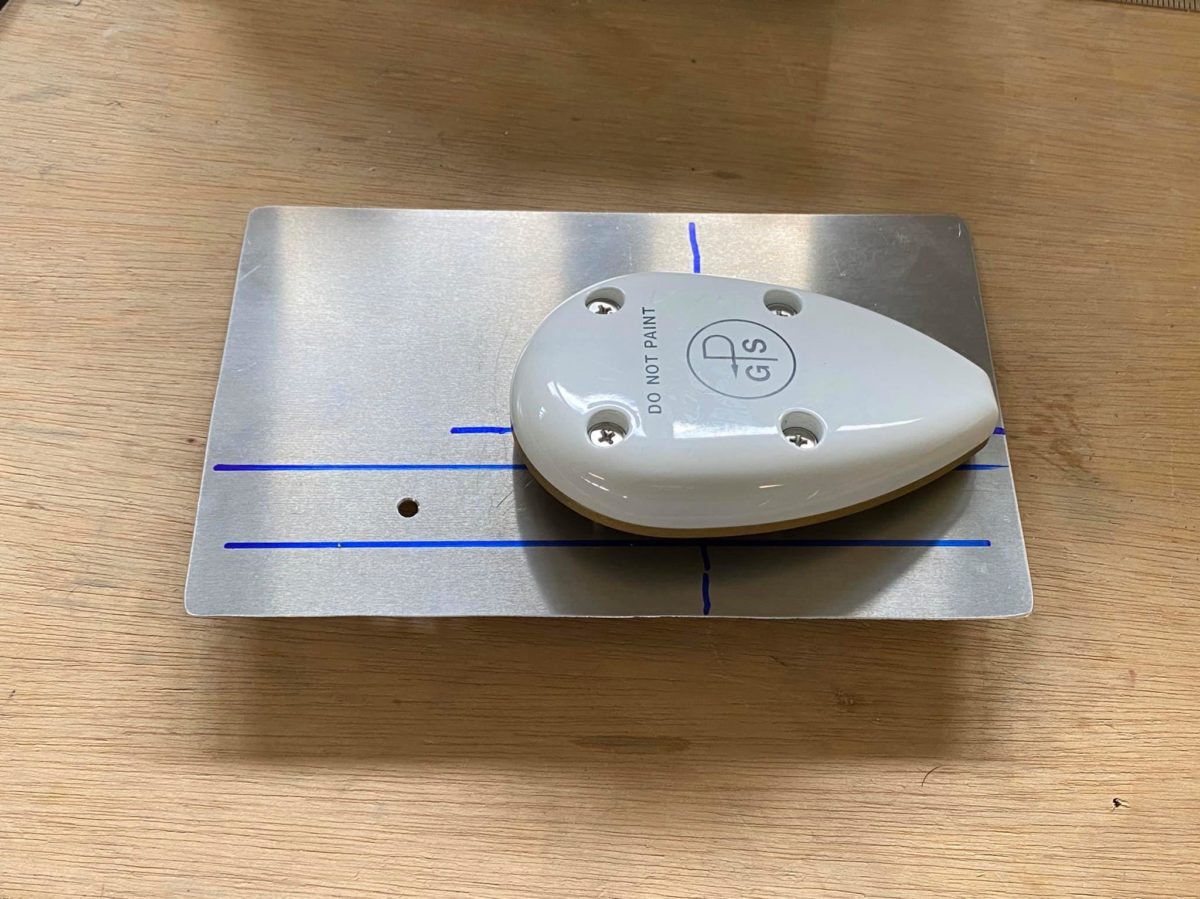

GPS antenna mounting plate fabrication underway.

GPS antenna mounting plate support angle fitting.

GPS antenna mounting plate ready for installation.

GPS antenna mounting plate and antennae installed. I just need to terminate & connect the RG 400 cable to the antenna, then run the VFR antenna wire through the firewall & connect it to the G3X PFD.

Panel, firewall forward progress

Right-side area between the panel (left) and sub-panel (right) all zip-tied and buttoned-up for inspection/flight.

The sharp-eyed amongst you will notice a ground wire hanging loose on the left. That’s for the electric Hobbs meter, which will be connected prior to the first engine start.

Left-side area between the panel (right) and sub-panel (left) all zip-tied and buttoned-up for inspection/flight.

The static line is in place, although the pitot and AOA lines will, of obvious necessity, have to wait until after the wings are mounted in the hangar toward month’s end. I’ve also yet to connect the GPS antenna to the G3X PFD.

Canopy wiring harness all zip-tied and buttoned-up for inspection/flight.

I wish I’d kept another segment of the red/white strip lights (thanks, Van’s, for the too-short length callout!!), but it’s plenty bright as-is. In fact, I’ll never have the rheostat turned up past halfway (at most!) in flight.

Oil quick-drain valve installed and safetied.

The first oil fill is done; very exciting!

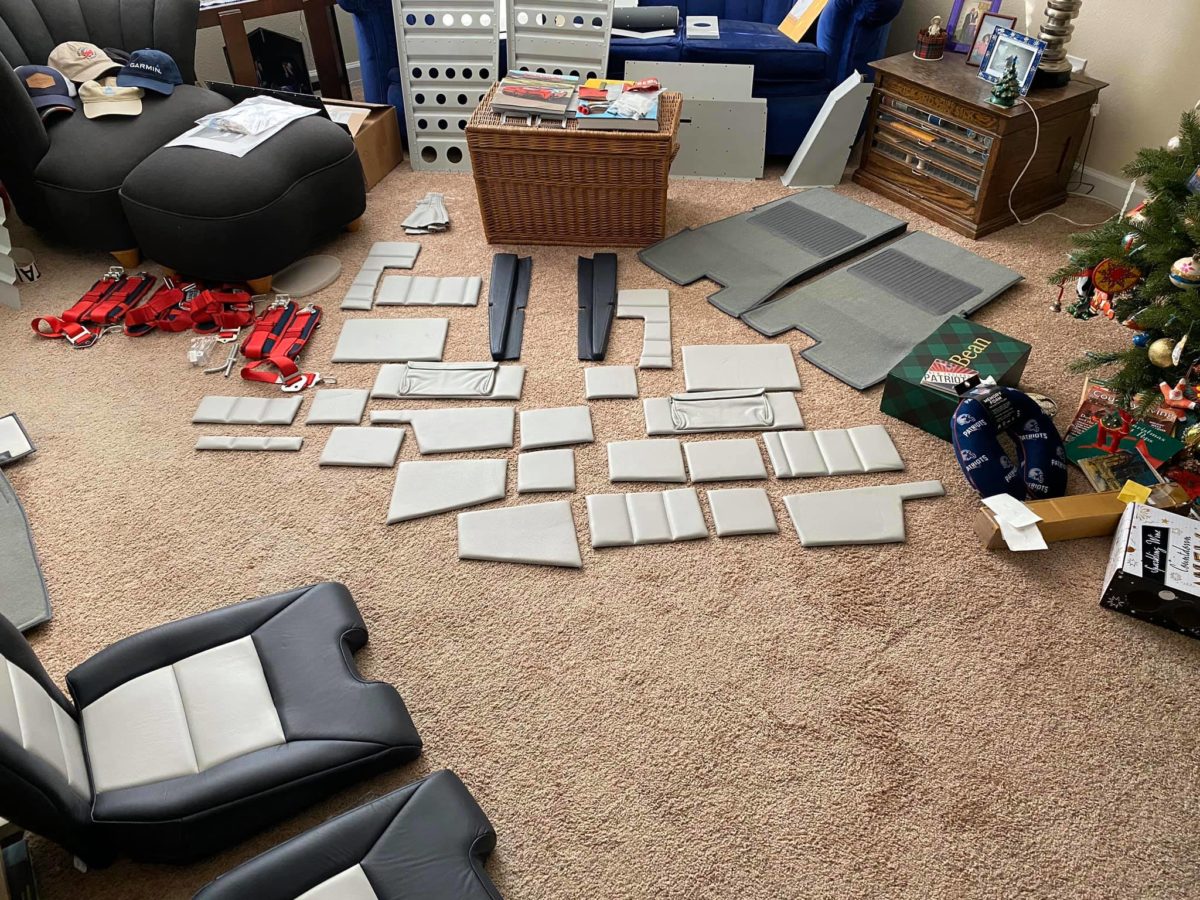

Fuselage continued…

Seat belts going in. I love Hookers!!

Seat belts installed.

Seat belts installed.

Canopy wiring harness and red/white strip lights going in.

Here’s a hint: don’t even bother with the WH-00126; it’s a generic harness and isn’t likely to match anybody’s requirements exactly – or even very closely. Just use the supplied Molex shells and pins to quickly fab your own.

In my case, I needed to wire the defrost fans, the strip lights, and the canopy warning switch. Easy-peasy. Except, of course, for one task…

Canopy wiring harness and red/white strip lights going in.

This is the beginning of the ugly task/odyssey revolving around running the two wires aft through the left-side canopy frame to the warning switch.

Van’s suggests using a length of safety wire to “fish” the wires down the channel. I tried two thicknesses of safety wire and both got kinked/hung up.

This time around, the safety wire made it through, but got hung up when pulling the copper wires.

Harness and Molex connectors in work.

Another iteration of the effort. No luck.

I tried using old plastic cards (credit cards, driver’s licenses, etc.) to pry the canopy side skin away to make a little more room in the channel. No luck.

Eventually, I had to suck it up and drill the side skin mostly off in order to place the two wires. Then re-riveted and re-screwed. I managed to drill out something like 40 rivets without buggering a single one, so that’s good.
