Panel, firewall forward progress

Right-side area between the panel (left) and sub-panel (right) all zip-tied and buttoned-up for inspection/flight.

The sharp-eyed amongst you will notice a ground wire hanging loose on the left. That’s for the electric Hobbs meter, which will be connected prior to the first engine start.

Left-side area between the panel (right) and sub-panel (left) all zip-tied and buttoned-up for inspection/flight.

The static line is in place, although the pitot and AOA lines will, of obvious necessity, have to wait until after the wings are mounted in the hangar toward month’s end. I’ve also yet to connect the GPS antenna to the G3X PFD.

Canopy wiring harness all zip-tied and buttoned-up for inspection/flight.

I wish I’d kept another segment of the red/white strip lights (thanks, Van’s, for the too-short length callout!!), but it’s plenty bright as-is. In fact, I’ll never have the rheostat turned up past halfway (at most!) in flight.

Oil quick-drain valve installed and safetied.

The first oil fill is done; very exciting!

Panel, firewall forward connections underway

Preparing to install a TNC connector (for WAAS GPS) to a length of RG400 cable. This 3-bladed stripper does most of the necessary stripping in a single step.

Here we see that all three cuts have been made simultaneously.

Each piece of outer casing (along with the underlying shielding layers, as appropriate) is removed with the gentle use of pliers.

The pin is slid into place and the amount of necessary center conductor trimming is readily apparent.

I used a razor knife to trim an additional 1/16″ from the outer casing.

The center conductor is trimmed and the pin is then slid back on in preparation for crimping.

I like to leave it just shy of the insulator as shown here. If the pin is bottomed on the insulator, you can’t be sure that the wire is fully inserted in the pin. This is a closeup of a very small assembly – the gap is probably on the order of 1/32″.

Pin crimped! Don’t forget to do a pull test…

Slide the barrel onto the cable (don’t forget!) and push the connector on until the pin clicks (it’s very obvious) into place. The neck of the connector should easily slip under the braided shield.

At this point, I like to do an initial test with a meter to confirm that the center pin isn’t grounded to the connector.

Slide the barrel up to the connector and crimp.

Don’t forget to do a final test with a meter to confirm that the center pin isn’t grounded to the connector.

If it tests good, then it’s all done and ready to install.

I should point out that BNC connectors are done with the same tools in exactly the same fashion.

I connected one end to my GTN 750 and ran the other end forward through the firewall. Once I’ve fabricated the antenna mount, I’ll final-route the cable, install a TNC connector on the end, and attach it to the antenna.

Pilot-side Infinity stick grip wires have been routed and identified with a meter.

The pilot’s Infinity grip has been installed; very exciting!!

Those two look good in there! It feels as though it’s getting close now…

Panel continued…

Instrument Panel Power-up

Padded glareshield now fully installed.

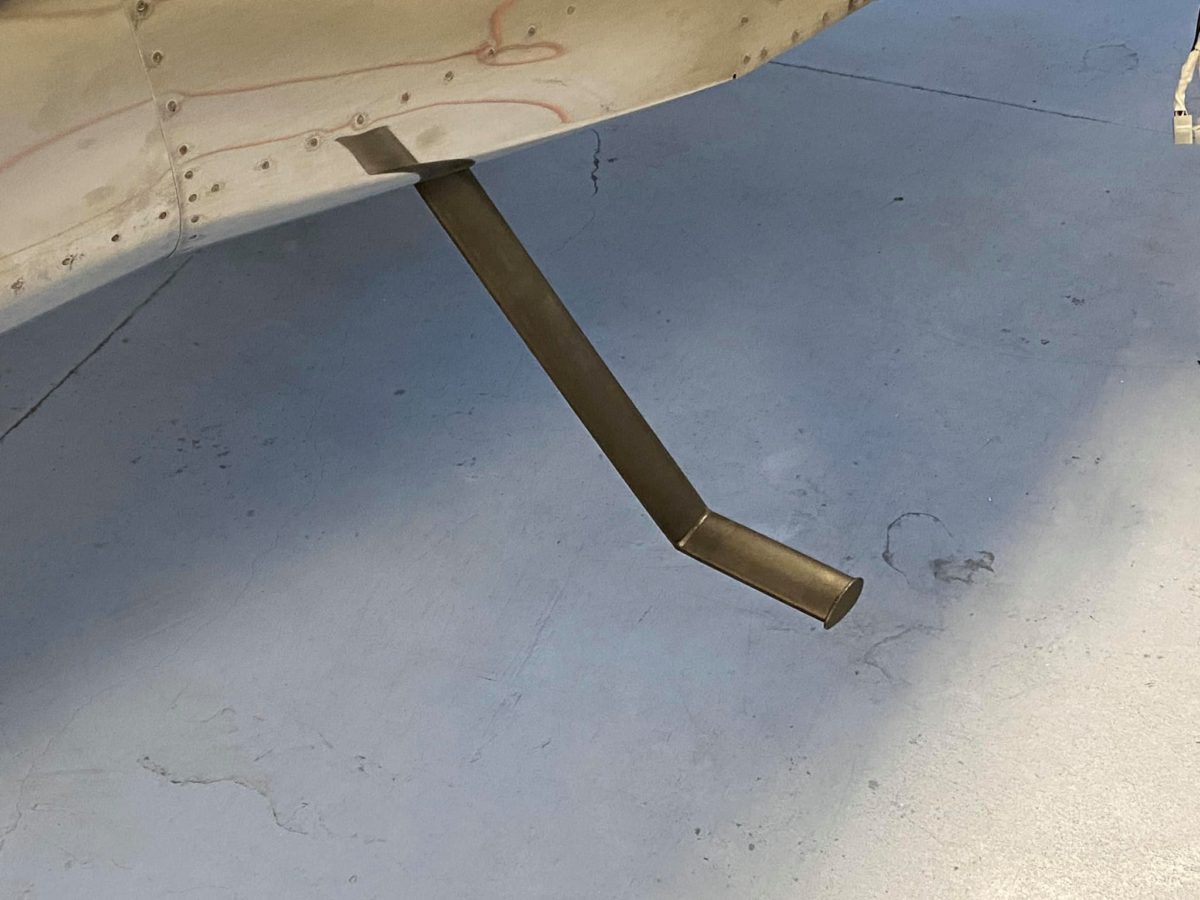

The first of the steps in progress. Each step is secured by two close-tolerance bolts. These are, naturally, an interference fit and are located in a very access-restricted area such that it’s nearly impossible to bring any force to bear on the bolt heat.

I got one in and put the rest in the freezer overnight. Hopefully, the others will surrender today without a fight.

Panel installation ongoing

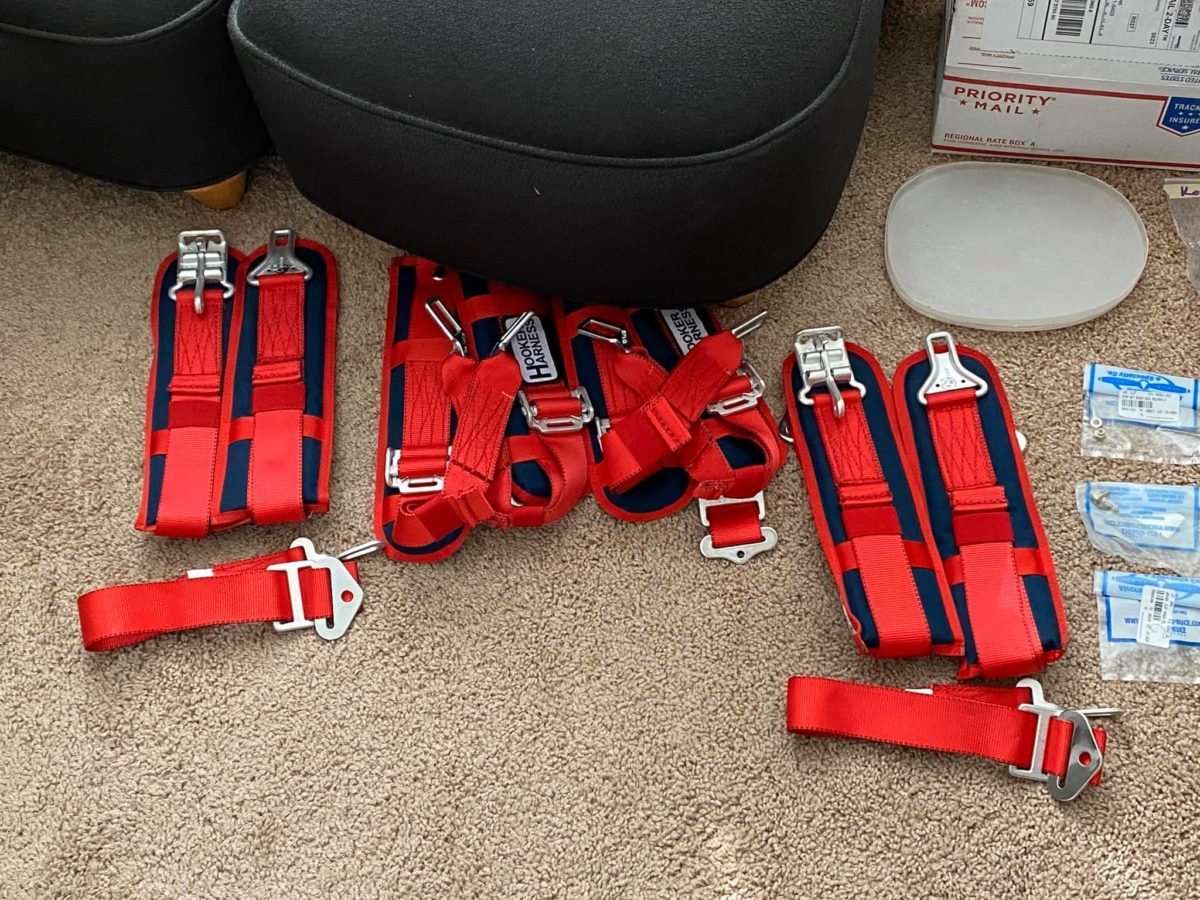

Harnesses laid out for the first time. Not quite ready for installation, but soon…

IBBS installed atop remote Comm 2 radio.

Comm 2/IBBS angle supports seen from below. At the front, the angles are Prosealed to the firewall structure.

Lots of wiring neatening left to do here (obviously), but the Comm 2 radio has now been connected to its harness.

Not much a photo here, but it’s a quick shot of the glareshield cover sitting beneath the canopy. I’ve just affixed the glareshield edging and the Velcro patches for the cover.

The seats have finally been removed from their box! A very nice job done by Abby at Flightline. The carpets can be seen lurking in the background.

I’ve been wondering for over a year (since I built the fuselage forward floor area) about how a flat floor would be achieved with the longitudinal angle in place. Now I see – a very ingenious solution!

If you don’t already know the answer, keep wondering for another few weeks…

Right side wiring cleanup underway. Most of the delay on this side has been due to the lengthy process of deciding upon and executing a solution to the B&C regulator location conundrum.

Problem solved!

Back under the left side for some semi-final wiring cleanup.

The B&C regulator in place. It turned out (completely coincidentally!) that the bolts holding the Comm 2 radio’s forward edge to the support angles were an exact match, width-wise, for the regulator.

Ideally, I’d have used the center hole on each side of the regulator, but there was no way to do that and still fit my hand above it with a wrench. In practice, though, it’s fine; that puppy isn’t going anywhere.

Having finally received the proper 3-blade stripper and crimper for RG400, I set about installing the Comm 2 antenna cable.

Unfortunately, the antenna backplate’s center hole (around the connector) is just a tiny bit too small to allow the terminal to fully seat. I’ll have to remove the antenna tomorrow and open it up with a Unibit.

Oddly, the other side (for the Comm 1 radio) is fine. Weirdly non-standard, right? Van’s – what are ya gonna do? LOL
